Mapping Projector

Share to：

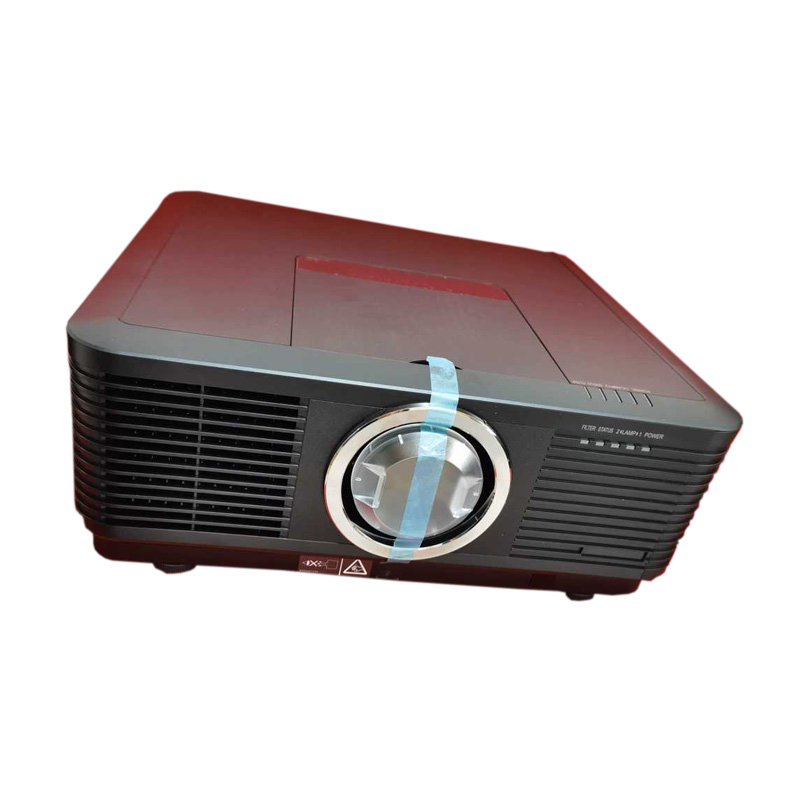

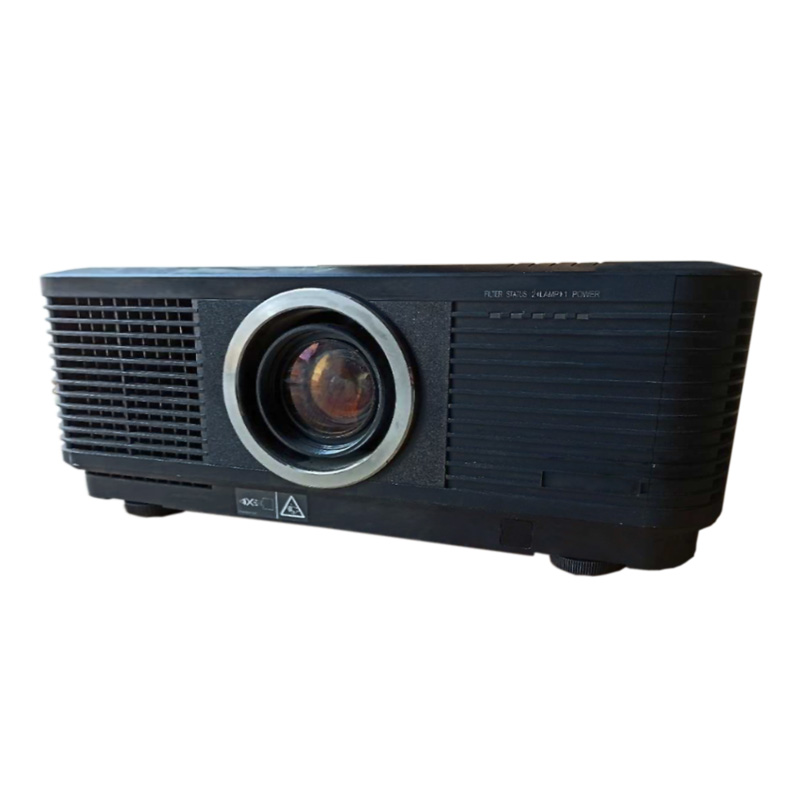

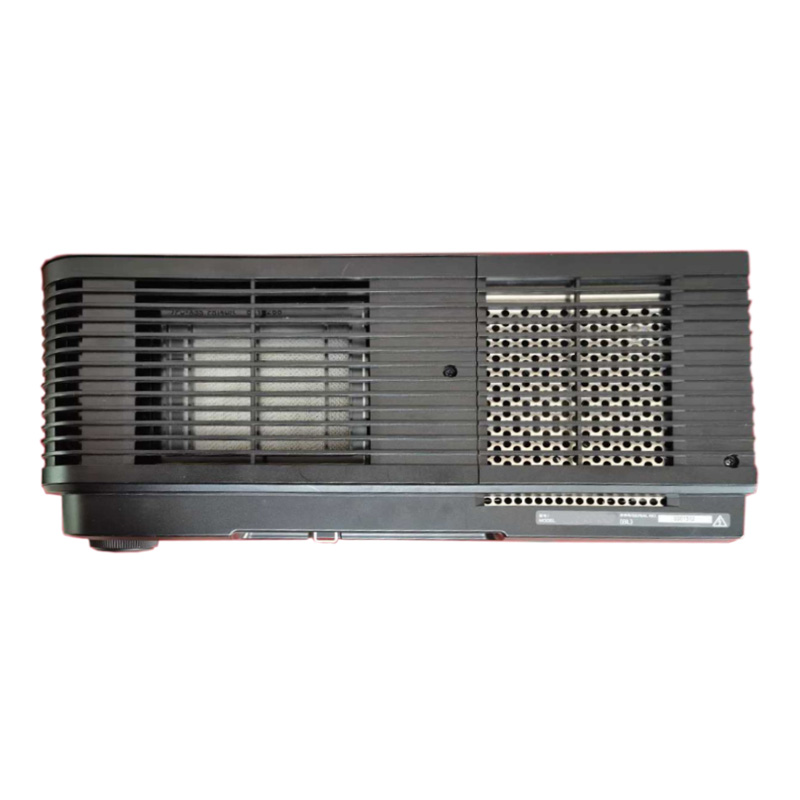

10000 ansi lumens lamp projector

Price：
￥0.00
Model： CVDP10WU
Details： WUXGA /native 1920* 1200 Pixels.Built-in  Edgeblending system
18038085485
产品详情



ModelCVDP10WU
Display TechnologyDLP DMD 0.67
Native ResolutionWUXGA 1920* 1200
Brightness10,000 ansi Lumens
Contrast100000:1 Contrast Ratio
Fan NoiseAs low as 27 dBa
Aspect Ratio16:10 Native,16:9 Compatible
Projection MethodFront, Rear,Ceiling,Table Top;Projection Image support horizontal and vertical flip
Weight20 kg

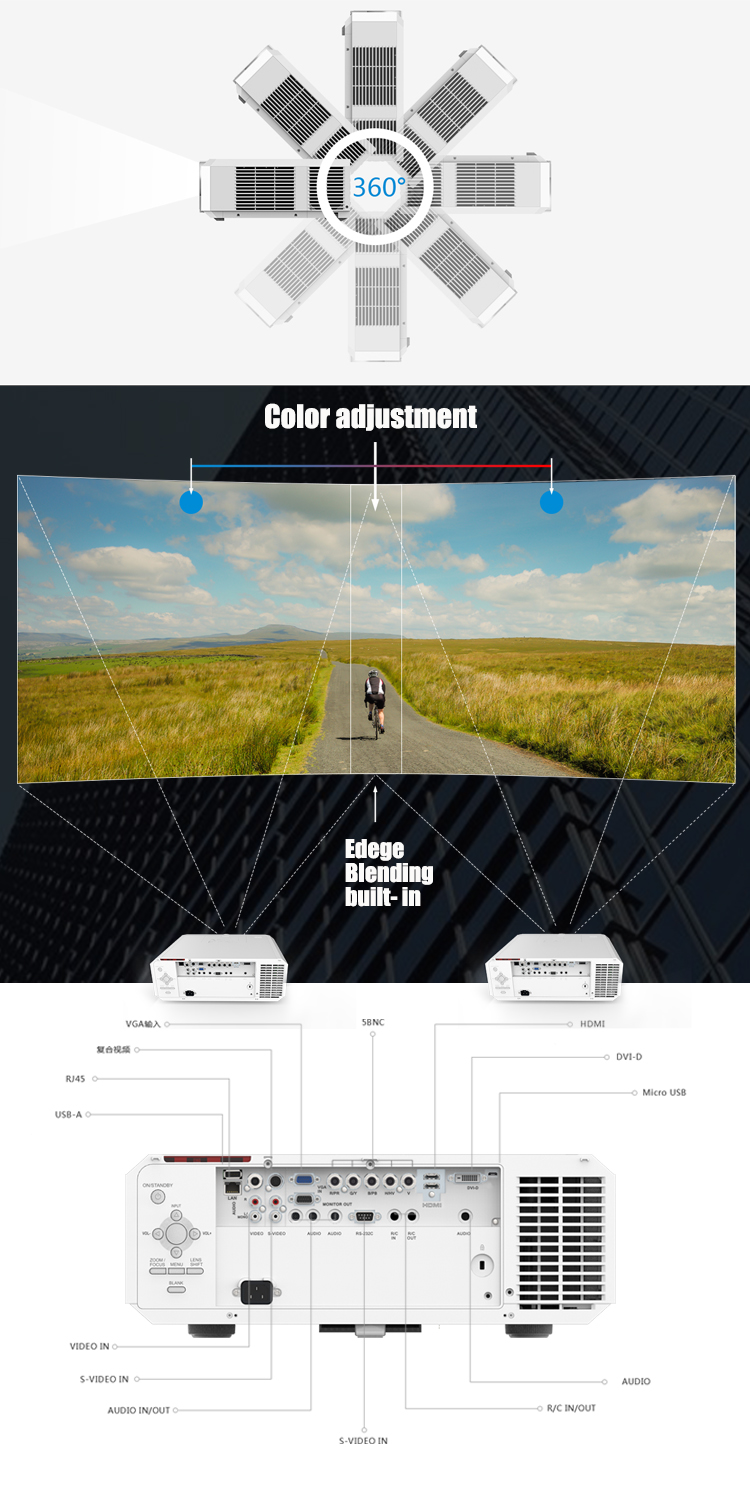

I/O Connectors

DVI-D×1;Video×1;S-VideoS×1;AudioL/R×2;Audioin(minijack,3.5mm)×3;RS-232×1;BNC×2;HDMIIn×1

VGA(D-sub15pin)×1;Audioout(minijack,3.5mm)×1

RS232×2;Wiredremotein;Mini-jack,3.5mm×1;Wired remote out,Mini-jack,3.5mm×1;RJ45×1

Displayable Colours1.07 Billion



Projection Lens

0.8:1

0.8:1 (manual)

1.2-1.5:1

1.72-2.36:1(standard)

2.2-2.9:1

2.6-4.5:1

4.0-6.2:1(manual)

4.3-7.3:1

Throw Ratio1.72-2.36:1
Projection Distance1.025-25.48m(Standard Power Lens )
Lamp Type/Lamp Lifedual 360W lamp

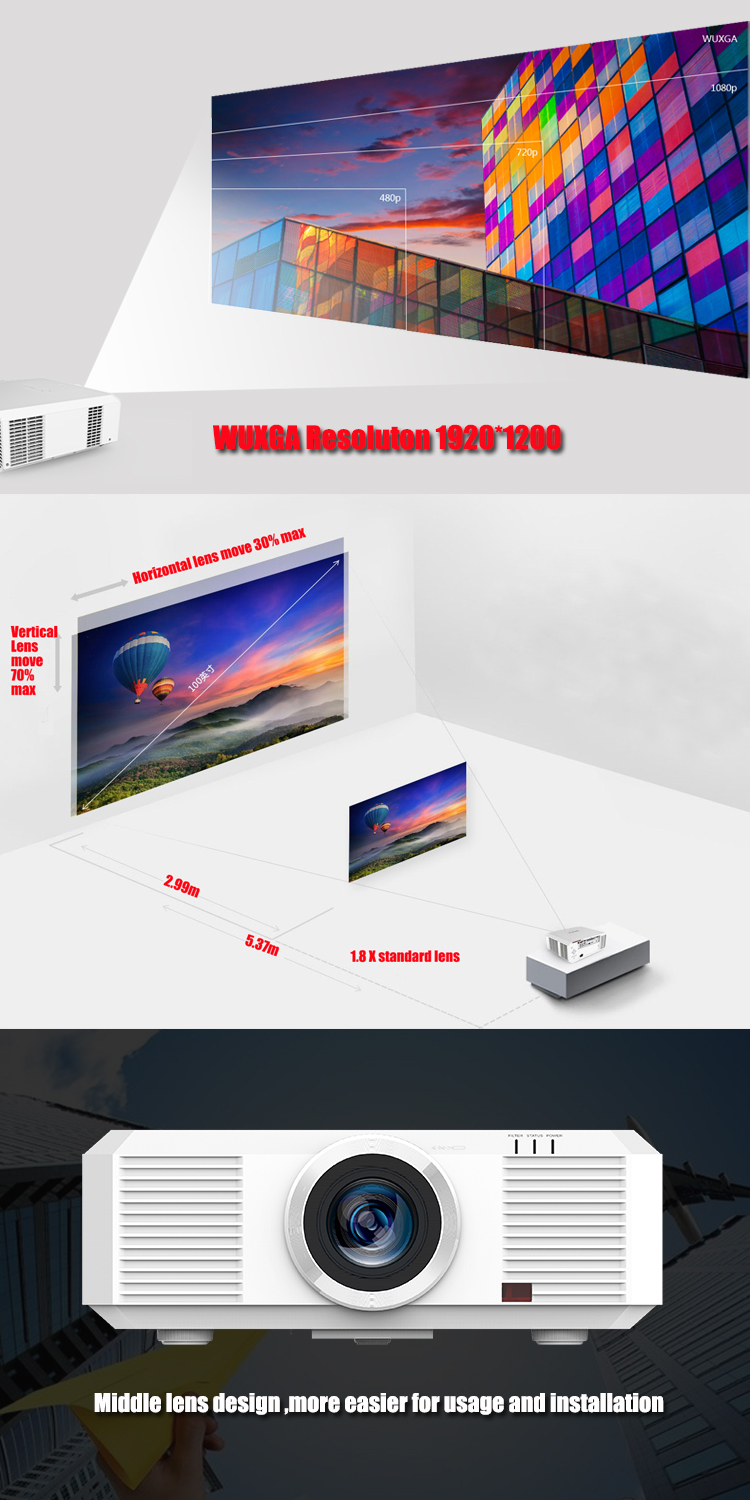

lens shiftV 55%,H10%
keyston correction±30° Vertical ± 15° Horizontal manualCorner Correction/Barrel correction
Dimensions (W x D x H)590x560x188 mm
Remote ControlFull function remote with direct source selecting
Power Supply100-240V, 50-60Hz
Power Consumption870W
Operating Conditions5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m
Uniformity90%
Standard AccessoriesAC Power Cord,VGA Cable, Remote Control,Quick Start Card,CD User Manual, Warranty Card
Optional AccessoriesCeiling Mount Kit, Additional Ultra long Cable
GuaranteeProjector 5-Years,lamp six months or 500Hrs











Outstanding Features

● 10,000 ANSI Lumens bright, with 90% uniformity and a 100000:1 Contrast Ratio.

● DLP DMD 0.67 imaging for rich, color saturated computer and video projection.

● No weaken on brightness after 3 years usage.

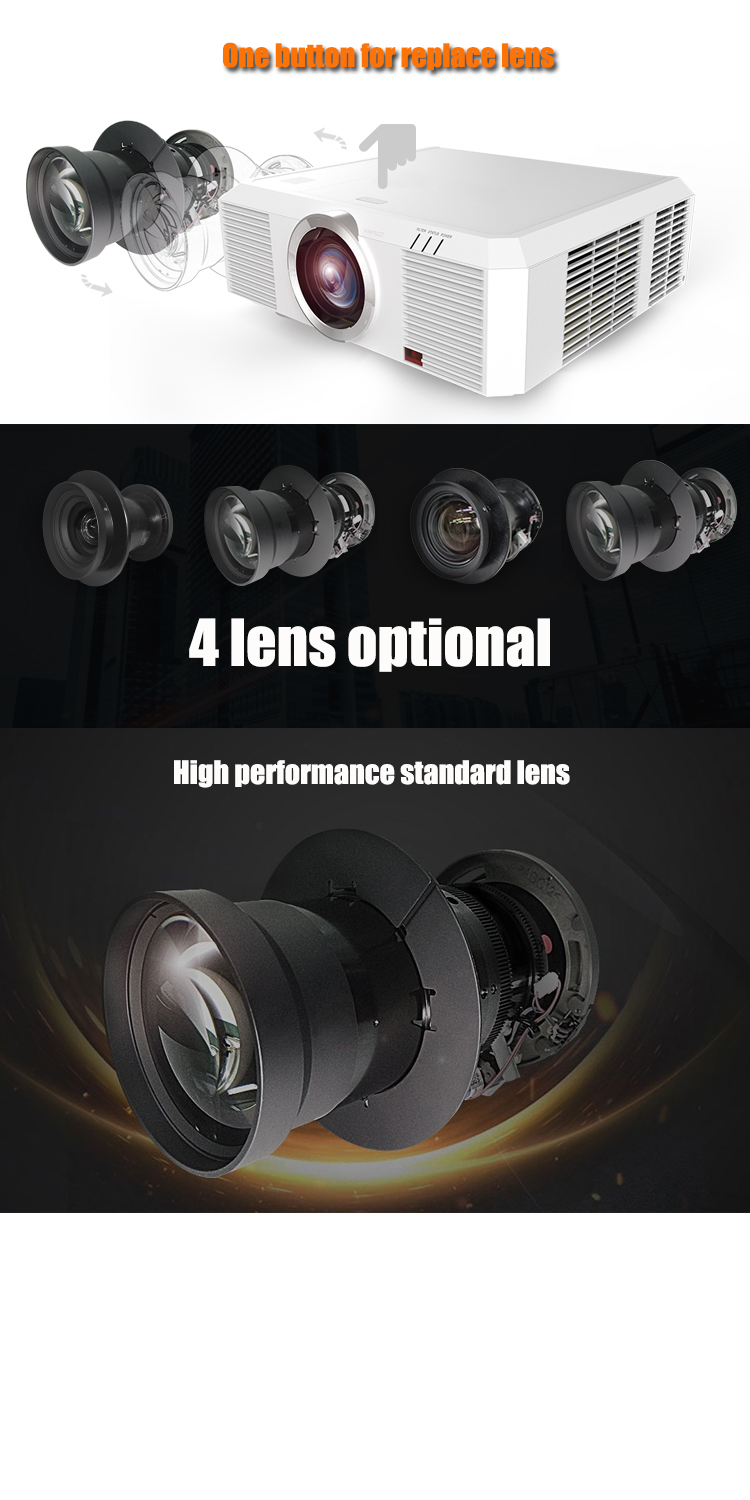

● Optional wide-angle and telephoto lenses. Instant lens change system.

● Vertical and Horizontal power lens shift and digital keystone correction.

● 16-bit color reproduction for superior color reproduction.

● Variable Power Management option. Optional local or remote keylock.

● Custom warm-up screen option. Built-in Color Auto Picture Control.

● Built-in network(RJ45) monitoring and control. Optional network content delivery.

● 7*24 hrs working

● 5 year projector warranty!

● PC free.

● Lan control
