Mapping Projector

Share to：

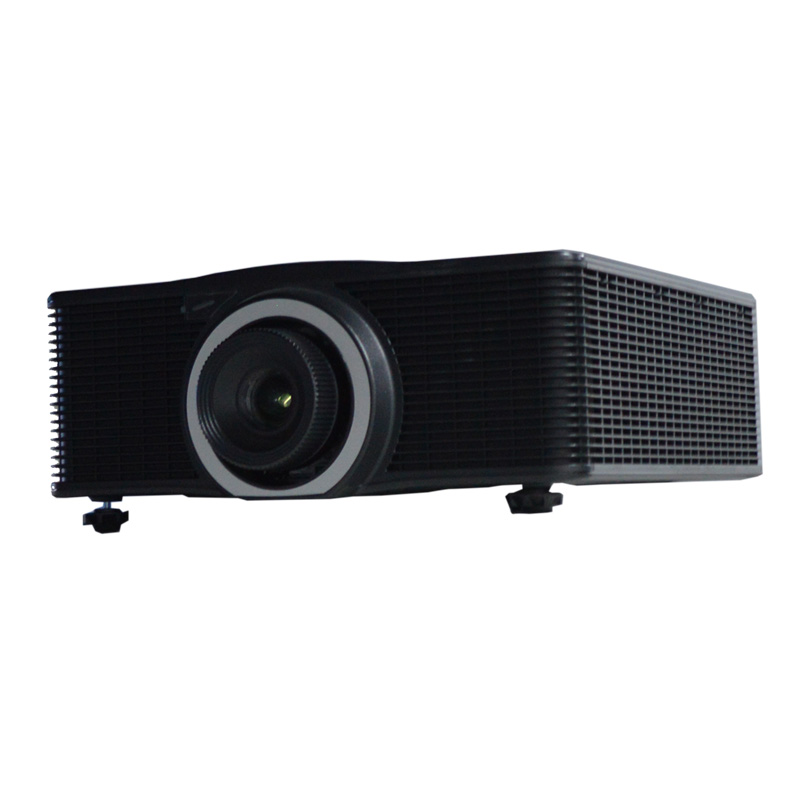

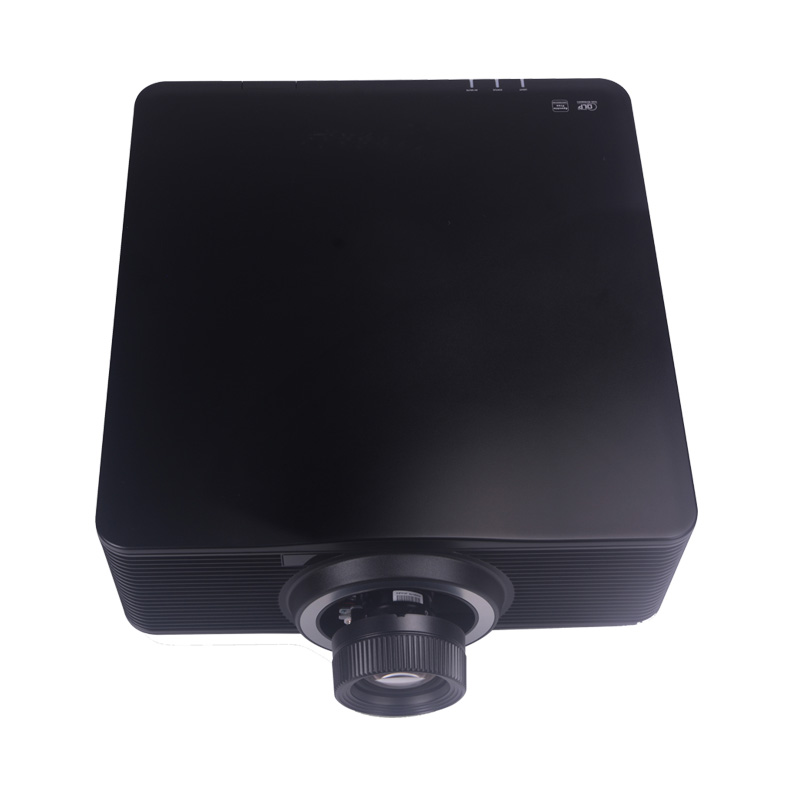

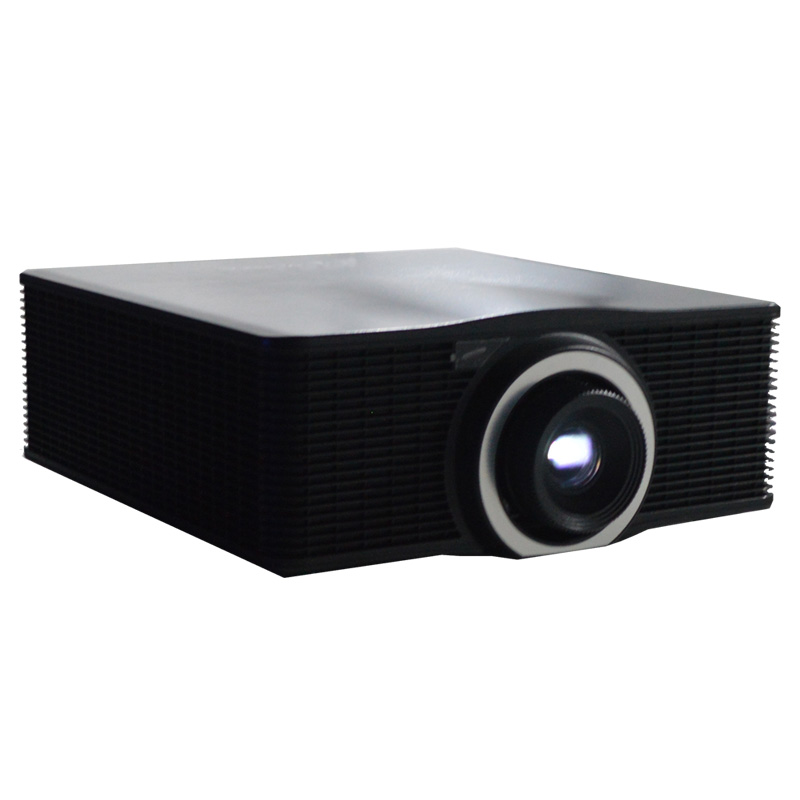

10000 ansi lumens laser projector

Price：
￥0.00
Model： CVDP9179S
Details： DLP DMD 0.67 chip，10,000 ansi lumens,High performance 560W Roller type laser light source.
13800000000
产品详情



ModelCVDP9179S
Display TechnologyDLP DMD 0.67
Native ResolutionWUXGA 1920* 1200
Max. Video Input4K
Brightness10,000 ansi Lumens
Contrast100000:1 Contrast Ratio
Fan NoiseAs low as 27 dBa
Aspect Ratio16:10 Native,16:9 Compatible
Projection MethodFront, Rear,Ceiling,Table Top;Projection Image support horizontal and vertical flip
Weight18 kg
I/O ConnectorsHDMI⑤x2; DVIx1; VGA Inputx1; HDBaseTx1; VGA Outputx1; RS232x1 RJ45x1Inputs:
Maximum Resolution4K via HDMI Terminal
Computer CompatibilityStandard 1080P(1920x1080),WSXGA+,WXGA+,WXGA(1280x800/1280x768),UXGA, SXGA, XGA, SVGA, VGA, Mac…
Video CompatibilityPAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080P, 720p)
Displayable Colours1.07 Billion

Projection Lens

0 .34:1, 0.42:1, 0.56:1,   0.79:1, 0.79-1.0:1

0.99-1.26:1

1.26-1.58:1 (STD)

1.58-3.0:1    3.0-5.7:1

Projection Screen Size100" at 2.94m
Projection Distance1.025-25.48m(Standard Power Lens )
Lamp Type/Lamp Life560W Roller type laser light source, 20000 hours life
lens shift± 100° Vertical   ± 30° Horizontal remote control
keyston correctionV+ H
Dimensions (W x D x H)525x484x186mm
Remote ControlFull function remote with direct source selecting
Power Supply100-240V, 50-60Hz
Power Consumption610W
Operating Conditions5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m
Uniformity90%
Standard AccessoriesAC Power Cord,VGA Cable, Remote Control,Quick Start Card,CD User Manual, Warranty Card
Optional AccessoriesCeiling Mount Kit, Additional Ultra long Cable
GuaranteeProjector 2-Years,lamp six months or 500Hrs








Outstanding Features

●   10,000 ANSI Lumens bright, with 90% uniformity and a 100000:1 Contrast Ratio.

●   DLP DMD 0.67 imaging for rich, color saturated computer and video projection.

●   24*7 hrs long time working without problem.

●   No weaken on brightness after 3 years usage.

●   Optional wide-angle and telephoto lenses. Instant lens change system.

●   1 seconds for turn on the projector,fast then other type in this area.

●   Includes most professional input configurations, including BNC and DVI.

●   Vertical and Horizontal power lens shift and digital keystone correction.

●   16-bit color reproduction for superior color reproduction.

●   Native WUXGA resolution. Compatible with inputs up-to 4K Support by HDMI.

●   DLP Active 3D ready for entertainment.

●   Variable Power Management option. Optional local or remote keylock.

●   Custom warm-up screen option. Built-in Color Auto Picture Control.

●   Built-in network(RJ45) monitoring and control. Optional network content delivery.

●   5 year projector warranty!
