Mapping Projector

Share to：

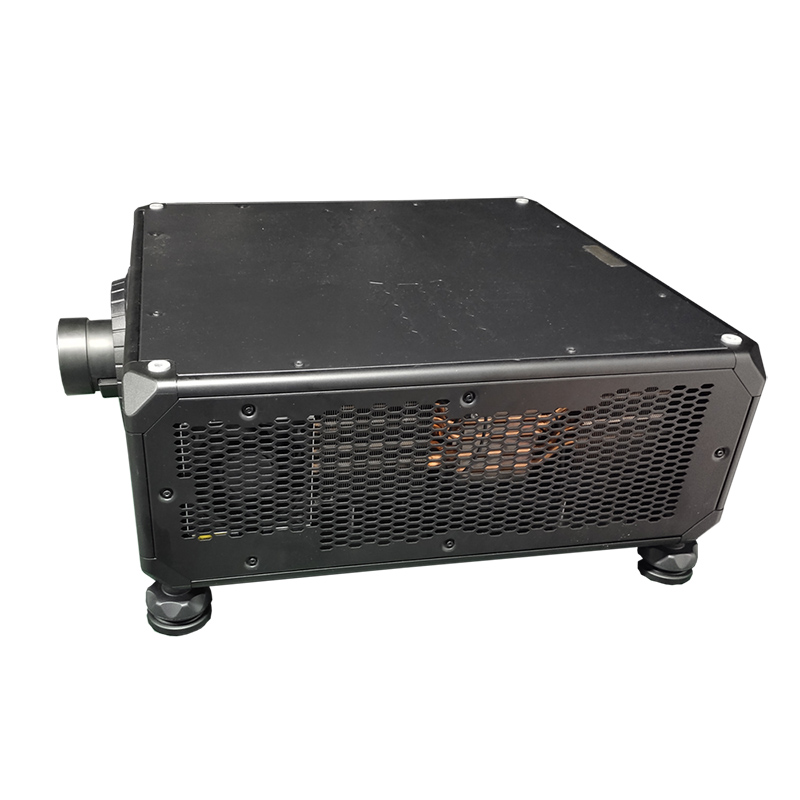

30000 ansi lumens laser projector

Brand： 0
Price：
￥0.00
Model： CVDP1060+
Details： 30,000 ansi lumen. High emitting effeciency,high performance .
18038085485
产品详情

1000中间用图1.jpg360 degree projection 1000.jpg


ModelCVDP1050+CVDP1060+
Display TechnologyDLP DMD 0.96
Native Resolution25,000 ansi lumens30,000 ansi Lumens
Contrast3,000,000:1 Contrast Ratio
Fan Noise43dBa
Aspect Ratio16:10 Native,16:9 Compatible
Projection MethodFront, Rear,Ceiling,Table Top;Projection Image support horizontal and vertical flip
Weight45 kg
InputVGA*1,HDMI1.4*2,Display Port *1,3D-SDI in*1 ,3D-SYNC in*1 ,DVI-D*1,Wired remote in *1,USB-A*1,HD-BaseT*1,RS232*1,RJ45*1,3D active
Output3D-SDI out*1 ,3D-SYNC out*1,RS232*1,HDMI*1,12 Trigger*1
Maximum Resolution4K via HDMI Terminal
Displayable ColoursCover Rec.709




Projection Lens

0.24:1

0.38:1

0.63:1

0.84-1.02:1

1.02-1.36:1

1.2-1.5:1

1.5-2.0:1 （STD）

2.0-4.0:1

4.0-7.2:1

Throw Ratio1.5-2.0:1 （STD）
Projection Distance1.025-25.48m(Standard Power Lens )
Lamp Type/Lamp Life1700W B+R LD Laser, 20000 hours life-25000 hrs
lens shift±20° Vertical   ± 20° Horizontal manual
keyston correctionV+H
Dimensions (W x D x H)670x660x300 mm
Remote ControlFull function remote with direct source selecting
Power Supply100-240V, 50-60Hz
Power Consumption1900
Operating Conditions0°C - 50°C, Max. Humidity 85%, Max. Altitude 3000m
Uniformity0.9
Standard AccessoriesAC Power Cord,VGA Cable, Remote Control,Quick Start Card,CD User Manual, Warranty Card
Optional AccessoriesCeiling Mount Kit, Additional Ultra long Cable
Guarantee5 years










Outstanding Features

●   30,000 ANSI Lumens bright, with 90% uniformity and a 100000:1 Contrast Ratio.

●   DLP DMD 0.96 imaging for rich, color saturated computer and video projection.

●   24*7 hrs long time working without problem.

●   No weaken on brightness after 3 years usage.

●   Optional wide-angle and telephoto lenses. Instant lens change system.

●   1 seconds for turn on the projector,fast then other type in this area.

●   Includes most professional input configurations, including SDI and Display Port.

●   Vertical and Horizontal power lens shift and digital keystone correction.

●   Cover Rec.709 color area for superior color reproduction.

●   Support PJlink/Telnet/Crestron View control.

●   DLP Active 3D ready for entertainment.

●   360 degree installation.

●   Custom warm-up screen option. Built-in Color Auto Picture Control.

●   Built-in network(RJ45) monitoring and control. Optional network content delivery.

●   5 year projector warranty!
