Mapping Projector

Share to：

20000 ansi lumens laser projector

Price：
￥0.00
Model： CVDP1040+
Details： 1. DLP DMD 0.67 chip, 20,000 ansi Lumens
18038085485
产品详情

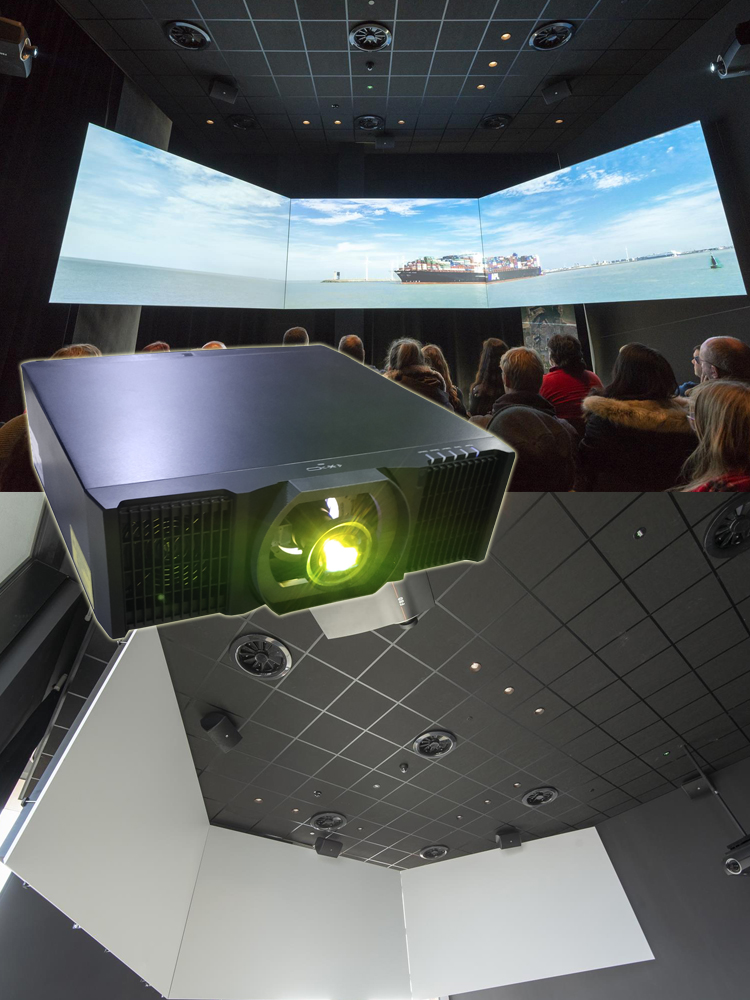

3d mapping 1000.jpg1000中间用图1.jpg360 degree projection 1000.jpg


ModelCVDP1020+CVDP1030+CVDP1040+
Display TechnologyDLP DMD 0.67
Native ResolutionWUXGA 1920* 1200
Brightness15,000 ansi lumens18,000 ansi Lumens20,000 ansi Lumens
Contrast100000:1 Contrast Ratio
Fan NoiseAs low as 27 dBa
Aspect Ratio16:10 Native,16:9 Compatible
Projection MethodFront,Rear,Ceiling,Table,Top;Projection Image support horizontal and vertical flip
Weight30 kg

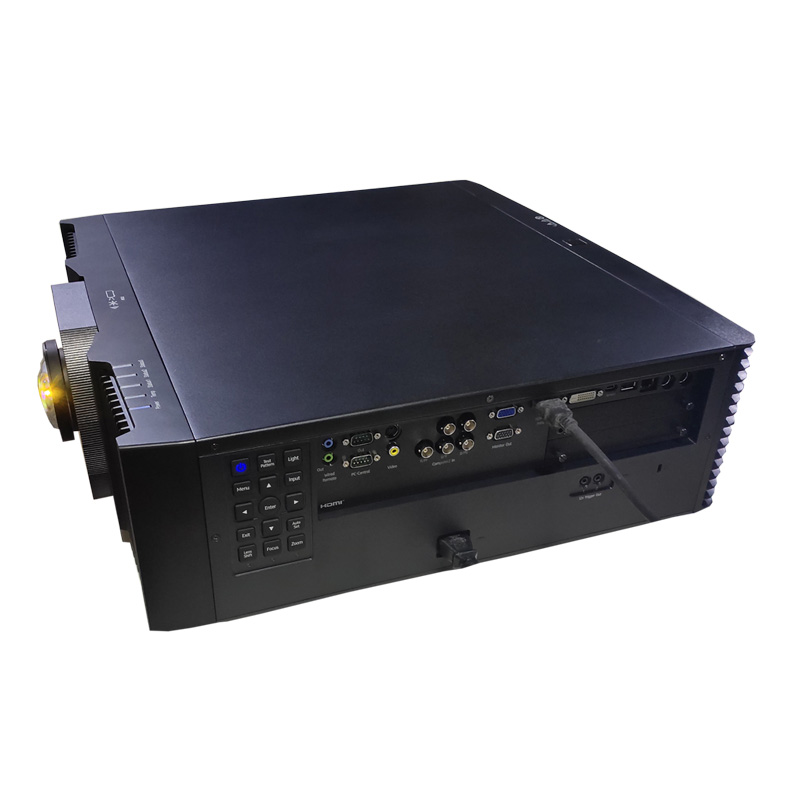

I/O ConnectorsHDMI*1,3D-SDI in/out*2, 3D-SYNC in/out *2 ,DVI-D*1,VGA in/out*2,USB-A*1,HD-BaseT*1,RS232*1,RJ45*1,3D active
Maximum Resolution4K via HDMI Terminal
Displayable Colours1.07 Billion



Projection Lens

0.38:1

0.76-0.95:1

1.14-1.71:1

1.61-2.42:1（STD）

2.37:3.6:1

3.53-5.65:1

5.52-8.83:1

Throw Ratio1.61-2.42:1 (STD)
Projection Distance1.025-25.48m(Standard Power Lens )
Lamp Type/Lamp Life1300W Roller type laser light source, 20000 hours life
lens shift±120° Vertical   ± 50° Horizontal manual
keyston correctionV+H
Dimensions (W x D x H)590x560x188 mm
Remote ControlFull function remote with direct source selecting
Power Supply100-240V, 50-60Hz
Power Consumption1460W
Operating Conditions5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m
Uniformity0.9
Standard AccessoriesAC Power Cord,VGA Cable,Remote Control,Quick Start Card,CD User Manual, Warranty Card
Optional AccessoriesCeiling Mount Kit, Additional Ultra long Cable
Guarantee5 years








Outstanding Features

●   20,000 ANSI Lumens bright, with 90% uniformity and a 100000:1 Contrast Ratio.

●   DLP DMD 0.67 imaging for rich, color saturated computer and video projection.

●   24*7 hrs long time working without problem.

●   No weaken on brightness after 3 years usage.

●   Optional wide-angle and telephoto lenses. Instant lens change system.

●   1 seconds for turn on the projector,fast then other type in this area.

●   Includes most professional input configurations, including BNC and DVI.

●   Vertical and Horizontal power lens shift and digital keystone correction.

●   16-bit color reproduction for superior color reproduction.

●   Support PJlink/Telnet/Crestron View control.

●   DLP Active 3D ready for entertainment.

●   360 degree installation.

●   Custom warm-up screen option. Built-in Color Auto Picture Control.

●   Built-in network(RJ45) monitoring and control. Optional network content delivery.

●   5 year projector warranty!
